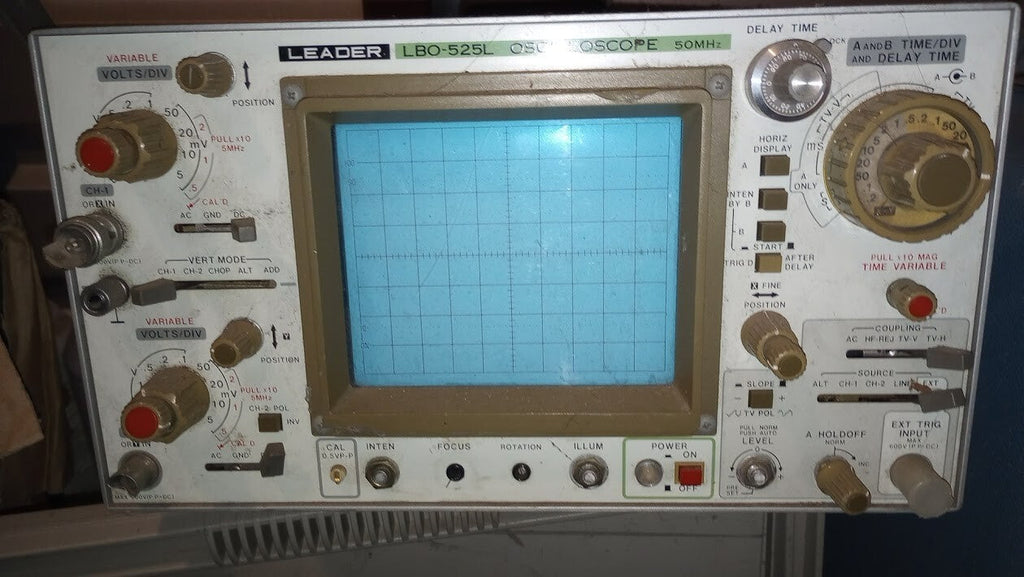

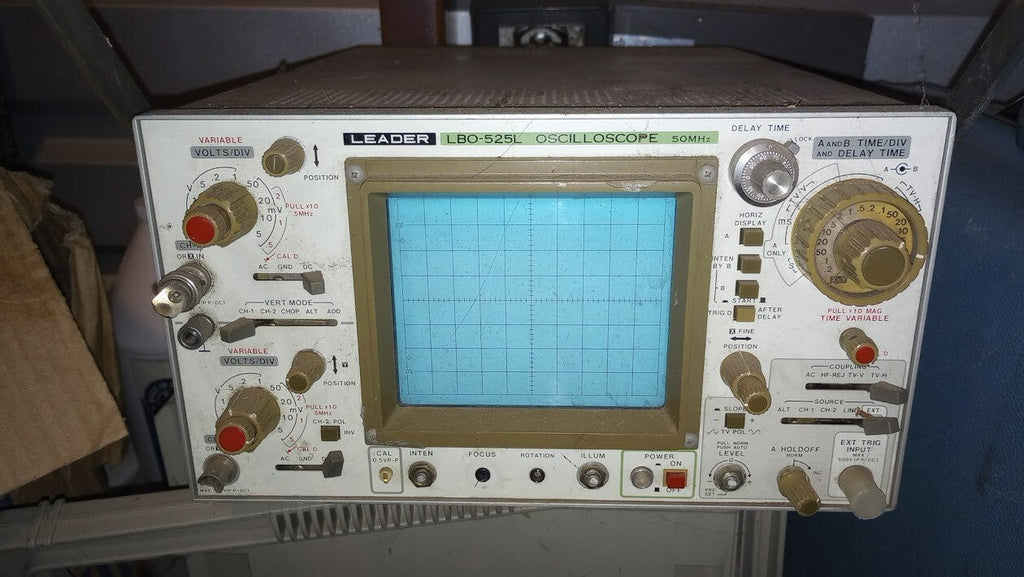

Leader LBO-525L Oscilloscope 50MHz Delayed Time Oscilloscope

The Leader LBO-525L oscilloscope is a graph-displaying device � it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Leader LBO-525L oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the �moving parts� of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

• Bandwidth 50 MHz
• Rise time 7 ns
• Number of Channels 2 ch
• Min. Vertical Sensitivity 5 mV/div
• Maximum Vertical Sensitivity 5 V/div
• Vertical(or Deflection Factor) Accuracy 3 %
• Input Coupling AC,DC,GND
• Input Impedance 1 MOhm
• Maximum Input Voltage 600 V(dc+p
• Main time base - lowest 200 ns/div
• Main time base - highest 200 ms/div
• B Sweep Time Base (low) 200 ns/div
• B Sweep Time Base (high) 0.5 ms/div
• Time base accuracy  3%
• Trigger Source External,Internal
• Trigger Modes Auto,Normal
• Trigger Sensitivity 0.5 mV
• Display Type CRT Monochrome
• Display Size 33 cm
